DrillMore provide DTH drill bit designed according to your local rock condition, to ensure drilling safety and improve the drilling speed. Our DTH Bit Size from 3" To 40", Bit Shank DHD/COP/QL/ SD/MISSION/NUMA/CIR/BR etc.

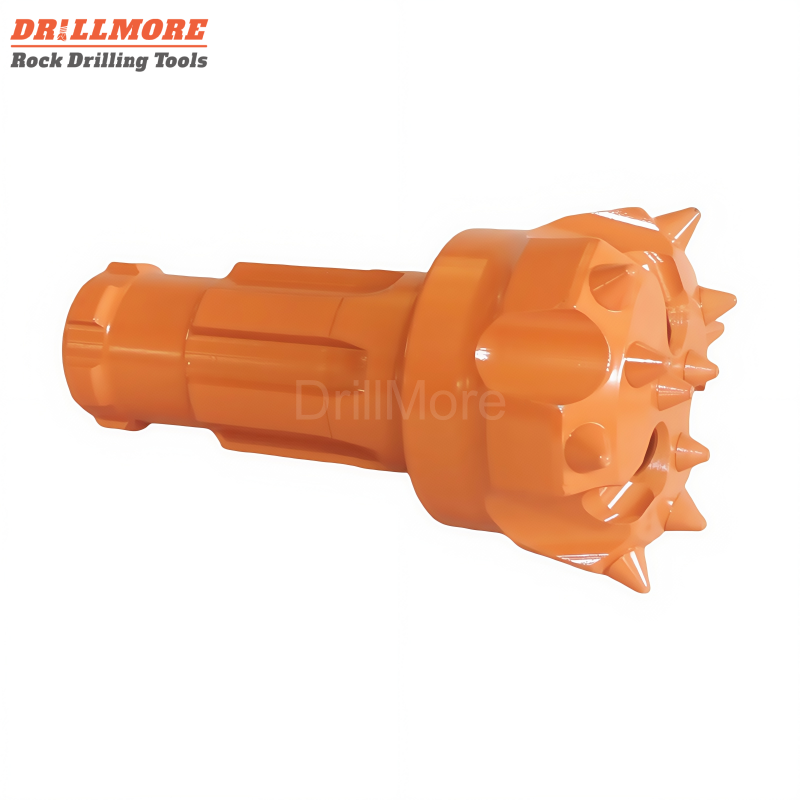

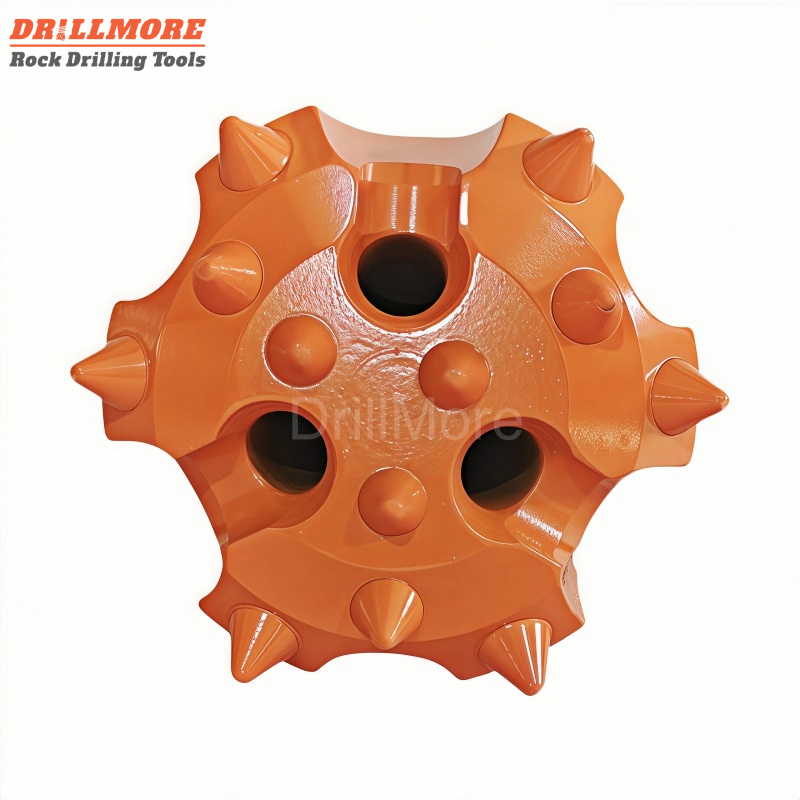

N4 115Middle-low Air Pressure DTH button bit, Shank Type: N4 115, 6 splines
CIR series N3-N4 drill bits
| Face shape | Face Form | Bit Dia. | Spline | Button type | Gauge Buttons | Front buttons | Weight |
| N3 | Convex Face | 90 | 6 | Ballistic | 6×Ø14 | 2×Ø13+2×Ø12 | 3.55 |
| Convex Face | 110 | 6 | Ballistic | 6×Ø14 | 6×Ø13 | 4.6 | |
| N4 | Convex Face | 110 | 6 | Ballistic | 6×Ø14 | 6×Ø13 | 6. |
| Convex Face | 130 | 6 | Ballistic | 8×Ø14 | 4×Ø14+3×Ø13 | 7.85 | |
| Flat Face | 140 | 6 | Ballistic | 8×Ø14 | 8×Ø14 | 8.8 |
How to find a suitable DTH bit?
DrillMore DTH Drill Bit has a variety of carbide and face designsfor use in different ground conditions.
| ||||
| Spherical/round buttons are usually used as gauge buttons of DTH bits, suitable for very abrasive and very hard formations. | Parabolic buttons are usually used as gauge buttons and front buttons of DTH bits, suitable for medium abrasive and hard formations. | Ballistic buttons are usually used as front buttons of dth bits, suitable for medium abrasive and medium hard formations. They can also be used as gauge buttons if the rock is soft. | Sharp buttons are usually used as front buttons of DTH bits for soft formations, suitable for high rotation speed and low bit broken rate soft rock. | Flat buttons are usually used as protection buttons to reduce wear on rubbing surface of DTH bits. |
Zulatu Rock-tresna gehiago
DrillMore gure bezeroen arrakastara dedikatzen da aplikazio bakoitzari zulaketa-bitak hornituz. Zulaketa-industriako gure bezeroei aukera asko eskaintzen dizkiegu, bilatzen ari zaren bita aurkitzen ez baduzu, jarri harremanetan gure salmenta-taldearekin jarraian, zure aplikaziorako bit egokia aurkitzeko.
